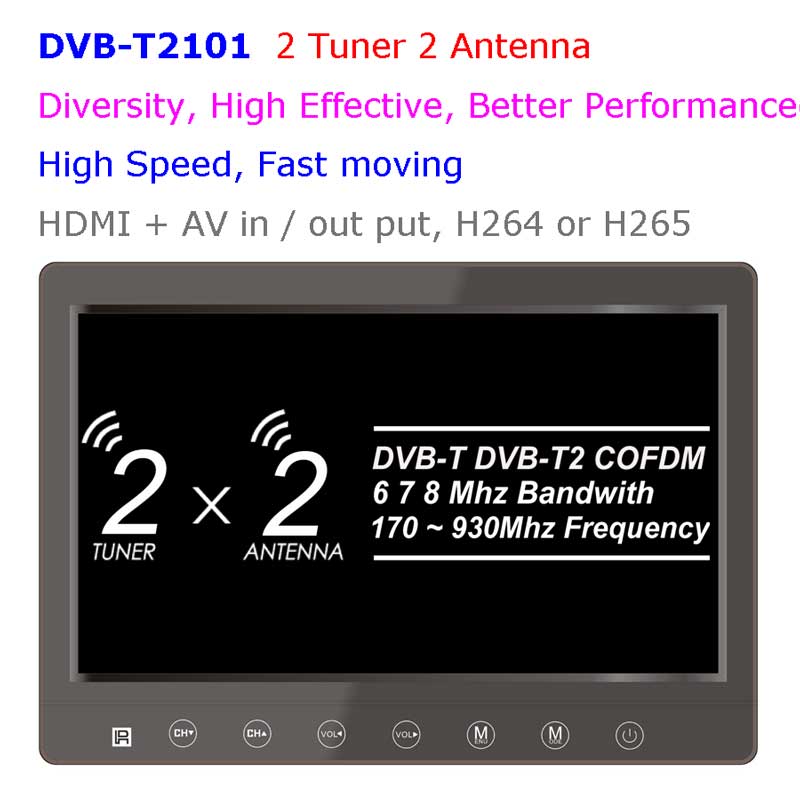

Diversity dvb-t cofdm 10.1 inch
Diversity dvb-t cofdm 10.1 inch digital tv monitor dvb-t2 receiver hdmi in out 6M 7M 8M bandwidth 170M to 930M frequency
Product Overview:
The Diversity DVB-T COFDM 10.1-inch Digital TV Monitor is a professional-grade wireless digital video receiver system designed for high-quality television reception in demanding environments. This device integrates a full-featured DVB-T/DVB-T2 receiver with a high-definition 10.1-inch display, supporting a wide range of RF frequencies and multiple modulation bandwidths. Built with COFDM (Coded Orthogonal Frequency Division Multiplexing) technology, the system offers robust signal reception, excellent anti-interference performance, and superior image quality, making it ideal for applications including UAV monitoring, field broadcasting, surveillance, and professional video acquisition.
This unit is specifically designed for environments where signal quality and reliability are critical. The combination of COFDM technology, diversity reception, and a high-resolution LCD monitor ensures that users can experience real-time, stable, and clear digital video reception even in complex or high-interference conditions. Its compact yet rugged design allows for portable use in the field, whether mounted on vehicles, UAVs, or used as a handheld monitoring solution.
Key Features:
-
Diversity Reception Technology:

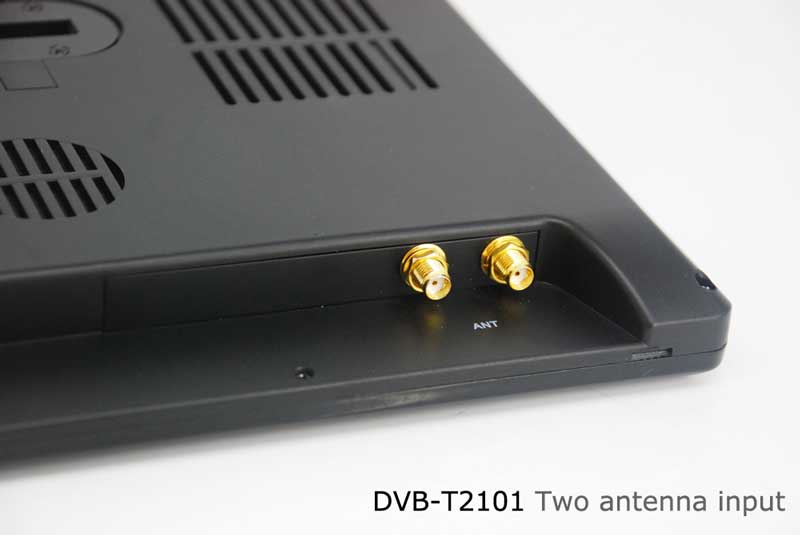

The monitor is equipped with dual antenna inputs supporting diversity reception. This feature significantly improves signal stability and reduces dropouts by automatically selecting the stronger signal between the two antennas. Diversity reception is especially beneficial in challenging environments with multi-path interference, obstructions, or long-distance transmission. By using two independent RF inputs, the device minimizes the impact of signal fading and ensures uninterrupted video reception. -
High-Resolution 10.1-inch Display:
The built-in 10.1-inch TFT LCD monitor provides sharp and clear video playback. With full digital display support, it allows users to view high-definition content directly on the device without the need for external monitors. The display resolution ensures accurate color reproduction and smooth motion, delivering a professional-grade viewing experience suitable for monitoring live broadcasts, UAV feeds, or remote surveillance operations. -
DVB-T and DVB-T2 Compatibility:
This device supports both DVB-T and DVB-T2 digital television standards, making it highly versatile for global use. DVB-T2, the second-generation standard, provides increased bandwidth efficiency, better reception quality, and enhanced resistance to multipath interference. The receiver can decode H.264 or MPEG-2 compressed signals, allowing for high-definition (HD) video playback and efficient data transmission. -
Flexible Bandwidth Options:
The Diversity DVB-T COFDM monitor supports multiple channel bandwidths, including 6 MHz, 7 MHz, and 8 MHz, ensuring compatibility with different regional broadcasting standards. This flexibility allows the monitor to adapt to a wide range of DVB-T/T2 networks, providing optimal performance regardless of local channel allocations. -
Wide Frequency Range:
With a frequency coverage from 170 MHz to 930 MHz, this monitor is capable of receiving a wide range of terrestrial and specialized digital broadcast signals. This broad frequency range ensures that users can access multiple channels across VHF and UHF bands, making it ideal for both professional and recreational applications. -
HDMI Input and Output:
The monitor features HDMI input and output ports, allowing it to serve as both a receiver and a signal distribution device. Users can connect external HDMI sources, such as cameras, set-top boxes, or other digital video devices, and monitor the video directly on the integrated display. The HDMI output enables signal pass-through to larger monitors, projectors, or recording devices, facilitating flexible deployment in field production setups. -
Robust COFDM Modulation:
COFDM modulation is the foundation of the device’s superior performance. This advanced modulation technique divides the transmitted signal into multiple orthogonal subcarriers, improving resistance to multipath interference, signal fading, and noise. As a result, users experience stable video reception even in urban areas with high signal reflection or from mobile platforms such as UAVs. -
Real-Time Monitoring and Low Latency:
The system ensures real-time video reception with minimal latency, providing an accurate live feed of broadcasts or field recordings. Low-latency operation is crucial for applications such as UAV video transmission, tactical surveillance, and live event monitoring, where delayed signals could compromise situational awareness or operational efficiency. -
User-Friendly Interface:
The monitor is equipped with an intuitive on-screen menu that allows easy channel scanning, signal strength monitoring, and system configuration. Users can adjust settings such as brightness, contrast, and audio output directly from the display. The interface is designed for both professional operators and field personnel, providing a balance of advanced features and ease of use. -
Portable and Rugged Design:
The compact, lightweight housing ensures portability for field operations while maintaining a durable structure capable of withstanding vibration, shock, and other environmental stresses. Its rugged design makes it suitable for use in outdoor conditions, on vehicles, or on UAV platforms without compromising performance. -
Versatile Power Supply:
The device supports a flexible power input range suitable for portable or vehicle-mounted operation. This makes it easy to deploy in remote locations where AC power may not be available, providing reliable performance for extended field operations.
Applications:
-
Professional UAV Monitoring:
The dual antenna diversity and wide frequency coverage make this monitor ideal for UAV video reception, providing stable real-time feeds even in complex terrains and urban environments. -
Field Broadcasting and Live Events:
Broadcasters can use the monitor to receive DVB-T/T2 signals for live coverage of outdoor events, ensuring high-quality video monitoring without signal interruptions. -
Surveillance and Security:
Security personnel can deploy this device for remote monitoring using digital broadcast signals, benefiting from its real-time, low-latency, and high-definition reception capabilities. -
Research and Development:
Engineers and researchers testing COFDM transmission systems or DVB-T2 networks can rely on this monitor for precise, real-time signal analysis. -
Educational and Training:
Institutions providing training in digital broadcasting, telecommunications, or UAV operations can use this monitor as a practical teaching tool for hands-on experience with DVB-T/T2 reception and COFDM technology.
Technical Specifications:
-
Display: 10.1-inch TFT LCD
-
Resolution: High-definition digital display
-
Receiver Type: DVB-T / DVB-T2 COFDM
-
Frequency Range: 170 MHz – 930 MHz
-
Channel Bandwidth: 6 MHz / 7 MHz / 8 MHz
-
Diversity Reception: Dual antenna input with automatic signal selection
-
HDMI: Input and output ports
-
Video Decoding: H.264, MPEG-2
-
Latency: Minimal, real-time monitoring
-
Power Supply: Compatible with portable and vehicle-mounted DC input
-
Construction: Rugged, vibration- and shock-resistant
-
Portability: Compact and lightweight for field use
Conclusion:
The Diversity DVB-T COFDM 10.1-inch Digital TV Monitor with DVB-T2 receiver is a state-of-the-art device for professional and field applications where signal reliability, image quality, and versatility are critical. Its dual-antenna diversity reception, wide frequency coverage, multiple bandwidth options, and high-definition display combine to create a powerful tool for UAV monitoring, live broadcasting, security, and digital video research. With robust COFDM technology, HDMI support, and low-latency operation, this monitor delivers exceptional performance in both professional and recreational scenarios, ensuring that users always have a clear, stable, and high-quality video feed.
