Product Overview
The UVC USB Camera to IP Ethernet Encoder Board is a compact embedded video processing module designed to convert standard USB UVC camera video into IP network streams.
The encoder board supports H.265/H.264 video compression, real-time Ethernet streaming, and multiple network protocols including RTSP, ONVIF, GB28181, and UDP.
With a small PCB design, low power consumption, and flexible integration options, it is suitable for industrial vision systems, smart cameras, robotics, remote monitoring equipment, AI vision applications, and OEM embedded video products.
Key Features
Convert USB Camera Video to IP Stream
Connect a standard USB UVC camera and transmit video through Ethernet networks.
Supported applications include:
- USB camera network upgrade
- Embedded IP camera development
- Industrial monitoring systems
- Remote inspection equipment
H.265 / H.264 Video Encoding
The encoder supports efficient video compression:
- H.265 High Efficiency Video Coding
- H.264 compatibility
- Adjustable bitrate
- Low latency video transmission
It reduces network bandwidth requirements while maintaining high-quality video.
Multiple Network Protocol Support
Compatible with common IP video systems:
- RTSP
- ONVIF
- GB28181
- UDP
- HTTP
- TCP/IP
The video stream can be integrated with:
- NVR systems
- VMS platforms
- Custom software platforms
- Cloud video applications
Compact Embedded Design
Designed for OEM integration:
- Small PCB size
- Low power consumption
- Easy installation inside customer equipment
- Flexible power input options
Open SDK and OEM Customization
OnVon provides customization services including:
- Firmware modification
- Customized video protocols
- Hardware interface changes
- AI algorithm integration
- Private label production
Technical Specifications
| Item | Specification |
|---|---|
| Model | 2169-UVC-IP |
| Video Input | USB UVC Camera |
| Video Encoding | H.265 / H.264 |
| Maximum Resolution | 1920×1080 @60fps |
| Video Bitrate | Adjustable |
| Network Interface | RJ45 Ethernet |
| Ethernet Speed | 10/100Mbps |
| Protocol | RTSP, ONVIF, GB28181, UDP, HTTP |
| Audio | G.711 / AAC |
| Serial Interface | UART TTL |
| Power Input | DC 6-12V / PoE optional |
| Working Temperature | -20°C to +70°C |
| PCB Size | 38×38mm |
Applications
Industrial Vision System
Convert USB industrial cameras into network cameras for:
- Machine inspection
- Factory automation
- Quality control
- Production monitoring
Robotics and Remote Control Systems
Provide real-time video transmission for:
- Industrial robots
- Autonomous vehicles
- Remote operation platforms
AI Vision Integration
The embedded platform supports AI vision development:
- Object detection
- Image analysis
- Smart monitoring
- Edge computing applications
Custom IP Camera Development
Ideal for companies developing:
- OEM cameras
- Special-purpose monitoring systems
- Embedded video products
Why Choose OnVon USB Camera Encoder Board?
Ready-to-Integrate Embedded Solution
Instead of developing a complete video system from zero, customers can integrate a proven encoder platform into their products.
OEM / ODM Support
OnVon supports:
- Customized PCB design
- Firmware development
- Interface modification
- Production support
Factory Direct Supply
OnVon is a professional video encoder and decoder board manufacturer in Shenzhen, China, providing embedded video processing solutions for global customers.
FAQ
What USB cameras are supported?
The encoder supports standard UVC-compatible USB cameras.
Before mass production, customers can send their camera specifications for compatibility evaluation.
Does it support RTSP streaming?
Yes. The board can output RTSP IP video streams through Ethernet.
Can it work with ONVIF NVR systems?
Yes. ONVIF support allows integration with many network video monitoring systems.
Can OnVon customize the firmware?
Yes. We provide OEM customization for special protocols, functions, and integration requirements.

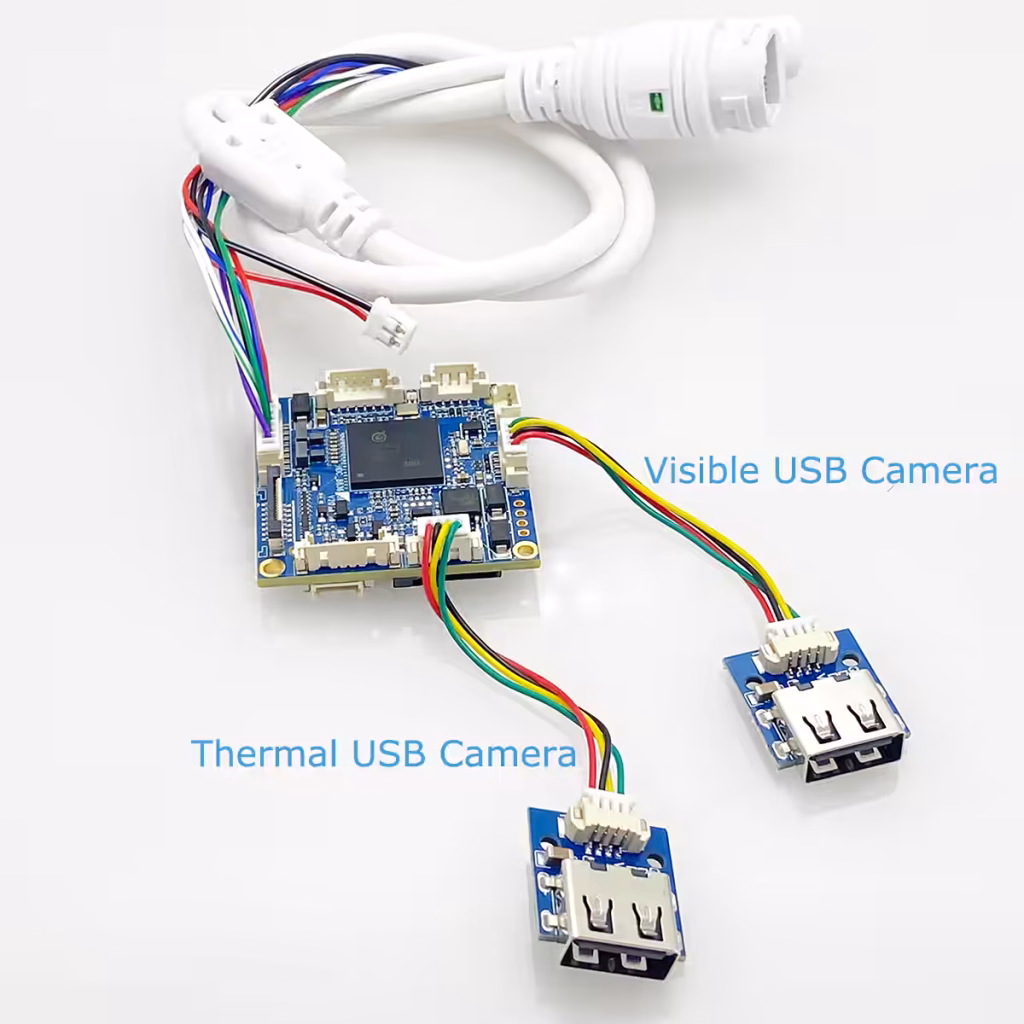

Can it support thermal cameras?
Yes. USB UVC thermal cameras can be evaluated for compatibility depending on the camera output format.
